Field Note: Why Pocket Sliding Doors Require Coordination Beyond the Schedule

Problem

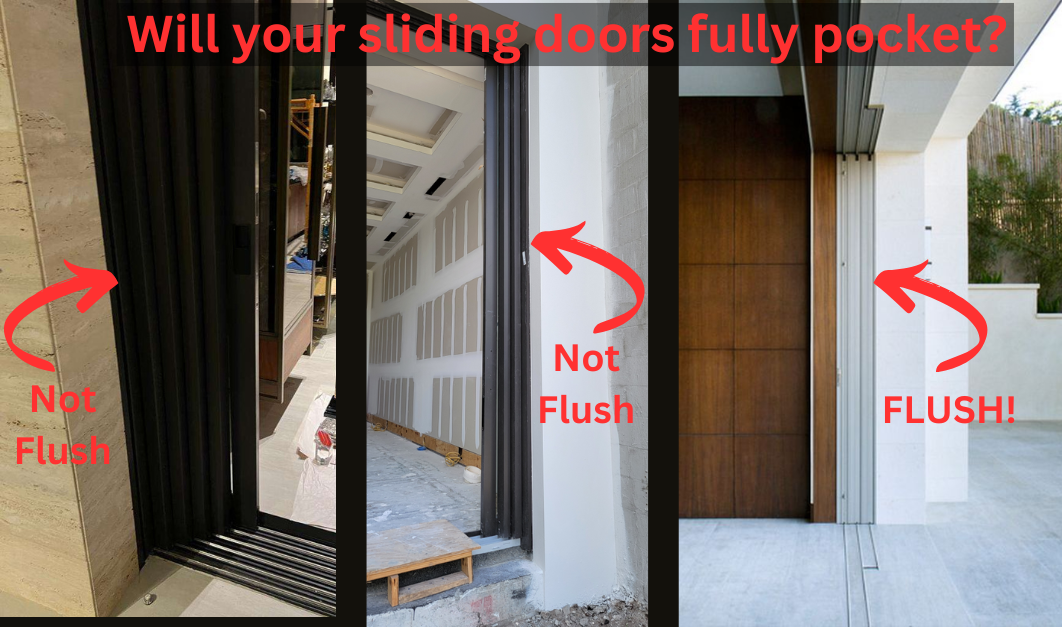

Pocket sliding doors are elegant—but they often derail projects if structural and finish coordination falls apart. Issues range from insufficient pocket depth to misaligned ceilings, especially when multiple panels stack into wall cavities.

Why It Happens

Architects and structural engineers rarely align early. Every manufacturer has different pocket clearances and stacking requirements—often adding up to 4″ per panel. Ceiling framing and structural recesses may not account for those depths or accommodate trim, transoms, and finishes properly.

How I Solved It

For high-end residential projects I coordinate:

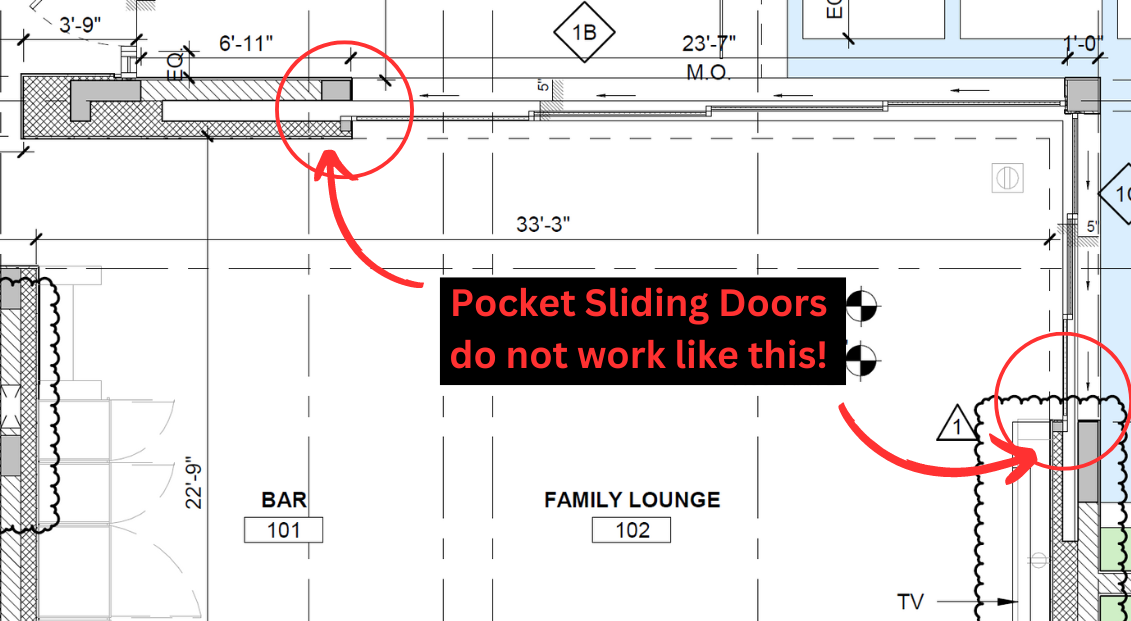

• Precise pocket dimensions based on manufacturer requirements, including panel stacking space

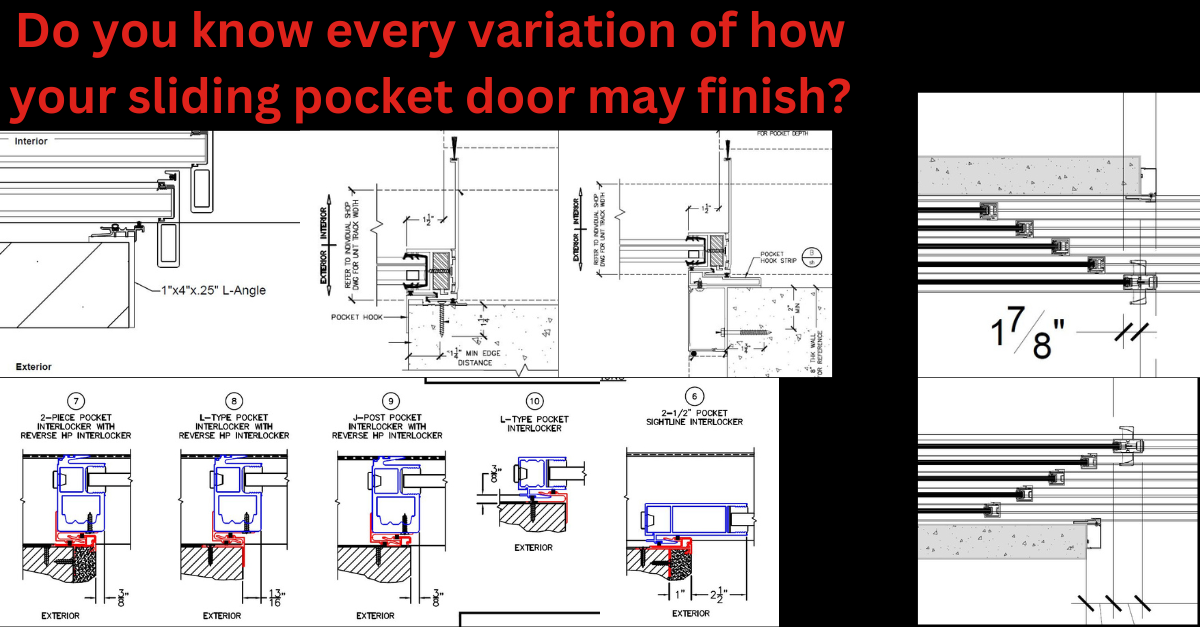

• Structural beam placement and ceiling framing coordination to accommodate tracks and finishes

• 3D sketches (in SketchUp) to visualize how frames, floors, trim, and transoms come together—avoiding surprises during installation.

The Takeaway

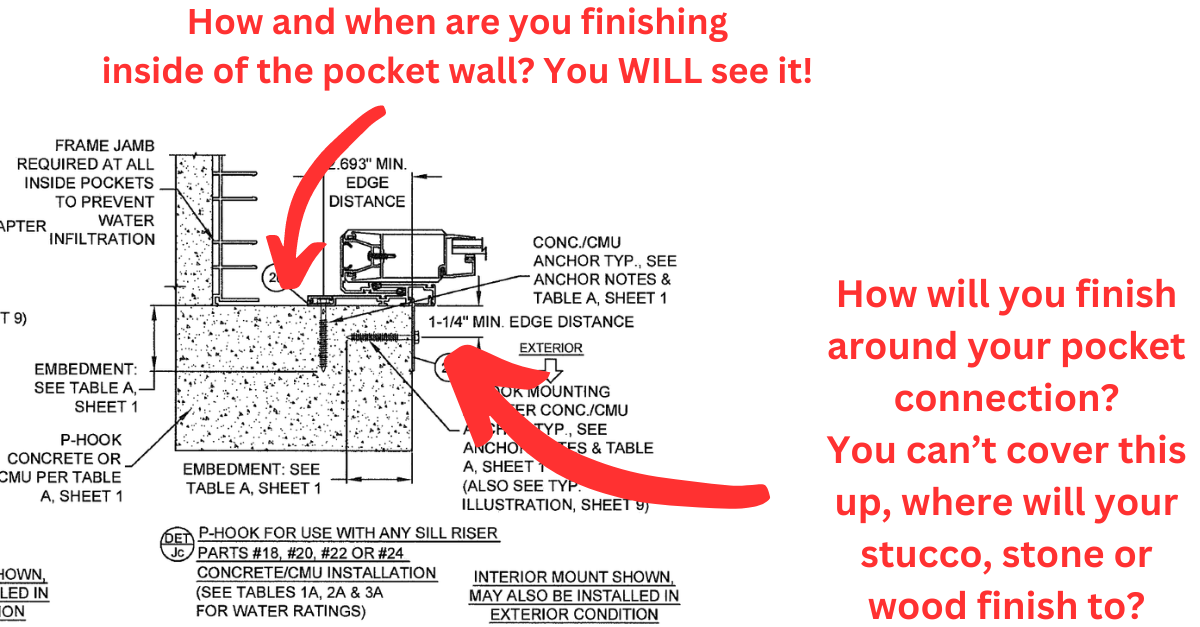

Pocket doors are not plug-and-play. Without precise coordination between structural, architectural, and glazing details, even the most minimalistic designs can fail to perform—or look clean. Pre-construction expertise is critical.
